Perforated Corten Western Reveal 3.0

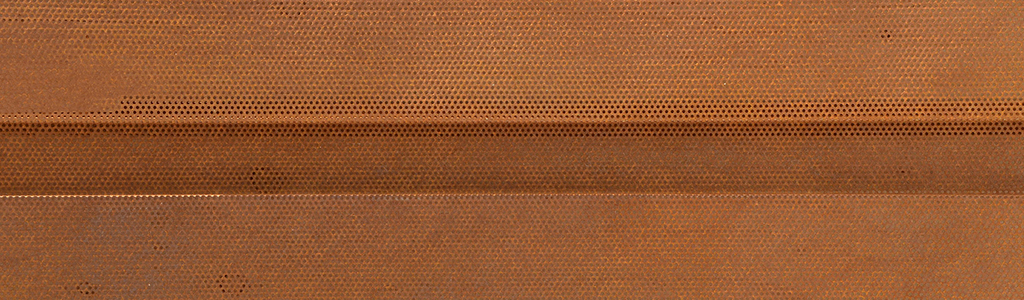

Horizontal Installation

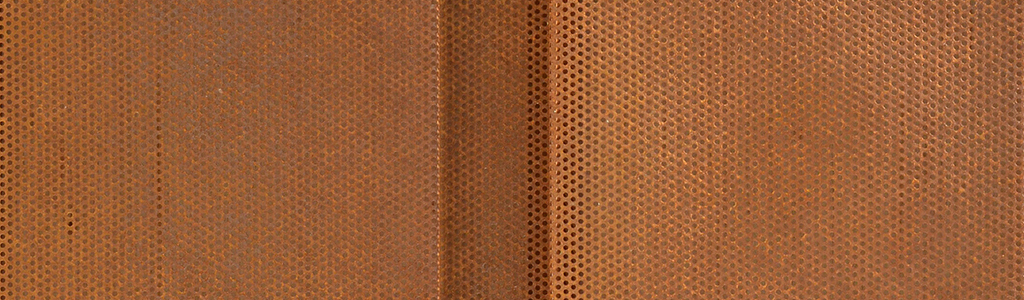

Vertical Installation
Perforated Corten Western Reveal 3.0
Western Reveal®-3.0 wall panel is a fixed concealed fastener panel that requires no clips for installation.
Horizontal or Vertical Installation.
Flush Wall and Soffit Panel. 3” Reveal/1.5” Deep
Horizontal or Vertical Installation.
Flush Wall and Soffit Panel. 3” Reveal/1.5” Deep
- 22 Gauge A606-4
- .127 Round Holes With 7/32" Stagger and a 30.5% Open Area.
- .25 Round Holes With 3/8" Stagger and a 40% Open Area.
Disclaimer Regarding Perforated Material and Oil Residue:
Due to the nature of the perforation process, a light oil is used during manufacturing. As a result, some oil residue may remain on the surface of the material. This residue is a normal byproduct of the process and can be easily wiped off. The presence of oil is not considered a defect and is not a valid reason for material rejection.
